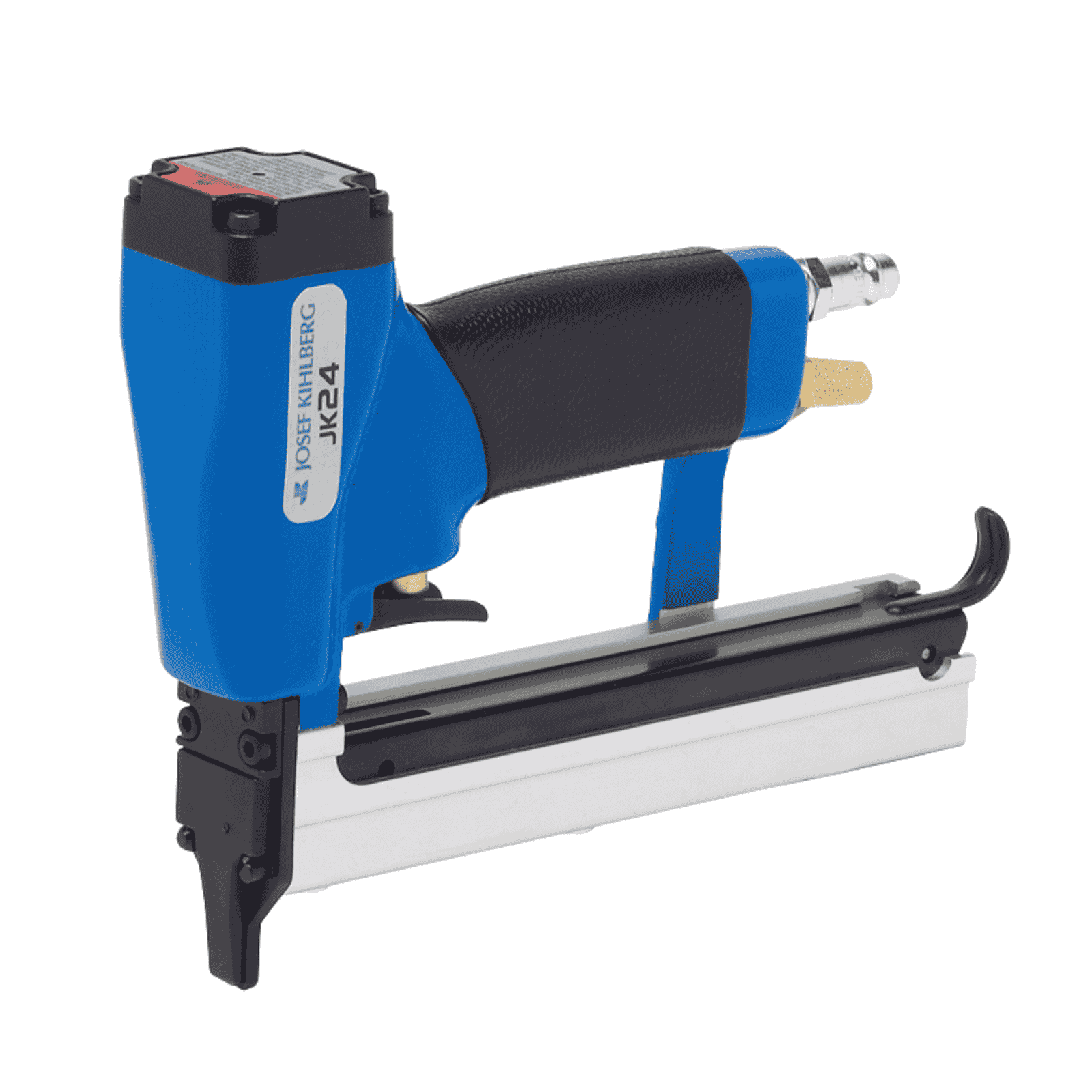

Josef Kihlberg JK24-690 Air Stapler | JK97 Series | 12–19 mm

Model JK24-690Code JK-012

  • Uses JK690 fine-wire staples (12–19 mm)
  • Long precision nose for tight access
  • Safe top-loading 125-shot magazine
  • Low recoil and low noise for bench work
  • Ideal for cabinetry backs, rails & drawer bottoms
$895.00+ GST$1,029.25 incl GST
In stock at Penrose

Ask the workshop Not sure it suits the job, or which fasteners it takes? Ring the people who fix them.

  • Courier anywhere in New Zealand
  • Click & Collect from 1 Beasley Avenue, Penrose
  • We service what we sell, in our own workshop

About this tool

The JK24-690 is a Swedish-built, fine-wire stapler designed for accurate fastening in cabinetry and furniture production. Its long precision nose, negligible recoil and safe top-loading magazine make it ideal for working in slots, grooves and tight spaces on benches and assembly lines.

Key Features

  • Uses JK690 fine-wire staples (12–19 mm)

  • Single-shot control with low recoil for accuracy

  • Safe top-loading magazine prevents face-direction loading

  • Long precision nose with pivoting door for quick clears

  • Low-noise operation via effective muffler

  • Lightweight, well-balanced body for long shifts

Ideal Applications

  • Nailing backs of cabinets, bookshelves and drawer bottoms

  • Stapling slide rails and board-to-wood assemblies

  • Precision work in slots, grooves and confined areas

  • General bench work and light interior fit-out

What’s Included

  • JK24-690 pneumatic stapler

  • Operating instructions and parts references

Specifications

BrandJosef Kihlberg
ModelJK24-690
Fastener TypeJK690 fine-wire staples
Fastener Length12–19 mm (½″–¾″)
Activation MethodSingle-shot (sequential)
Driving SystemPneumatic (compressed air)
Operating PressureUp to 7 bar (≈102 psi)
Magazine Capacity125 staples
Nose Length20 mm
Shipping weight1.1 kg
